Quasi-Long Pulse (pulse width 300us @ 1064nm) is an advanced combination of toning and lifting, enabling pigmented cells to absorb the laser selectively. It effectively stimulates collagen by target-destroying pigmented cells, proving highly useful for skin regeneration post-peeling, improving loose skin, and minimizing large pores.
Delivers 2 pulses of constant laser energy within an exceptionally short timeframe. Compared to previous laser toning procedures, the energy output is significantly higher. To reduce side effects such as hypopigmentation, hyperpigmentation, or melasma recurrence, high energy is split into two, maximizing output efficacy while reducing potential complications. Accessible at both 1064nm and 532nm wavelengths.
Guarantees highly reliable treatment results even during prolonged working sessions. This integrated system maintains a completely consistent and stable energy output from start to finish.
| Parameter Name | Technical Details | |
|---|---|---|
| Laser Wavelength | 1064nm / 532nm | |
| Aiming Light Wavelength | 650nm (Red Color Indicator) | |
| Output Energy for Laser Terminal | Single Pulse | 1064nm: 100mJ - 1000mJ 532nm: 50mJ - 650mJ |
| Double Pulse | 1064nm: 200mJ - 2600mJ 532nm: 100mJ - 1300mJ |
|
| Laser Mode | Single / Double Pulse Options | |
| Pulse Repetition Rate | 1 Hz - 10Hz | |
| Pulse Width |
• 5-8ns @ 1064nm / 532nm Q-Switched • 5-8ns @ 1064nm / 532nm DUAL-Q Q-Switched • 300us @ 1064nm Quasi-Long |
|
| Spot Diameter | 2mm - 10mm adjustable | |
| Power Supply | 1500W | |
| Rated Operational Current | 10A | |
| Water Tank Capacity | 8L | |
| Articular Optical Arm Elements | 7 Articular Optical Arm Joint Configuration | |
| Dimensions of Machine | 83 * 33 * 92 cm | |
| Packing Size | 116 * 48 * 112 cm | |
| Net Weight (N.W.) | 98 kg | |

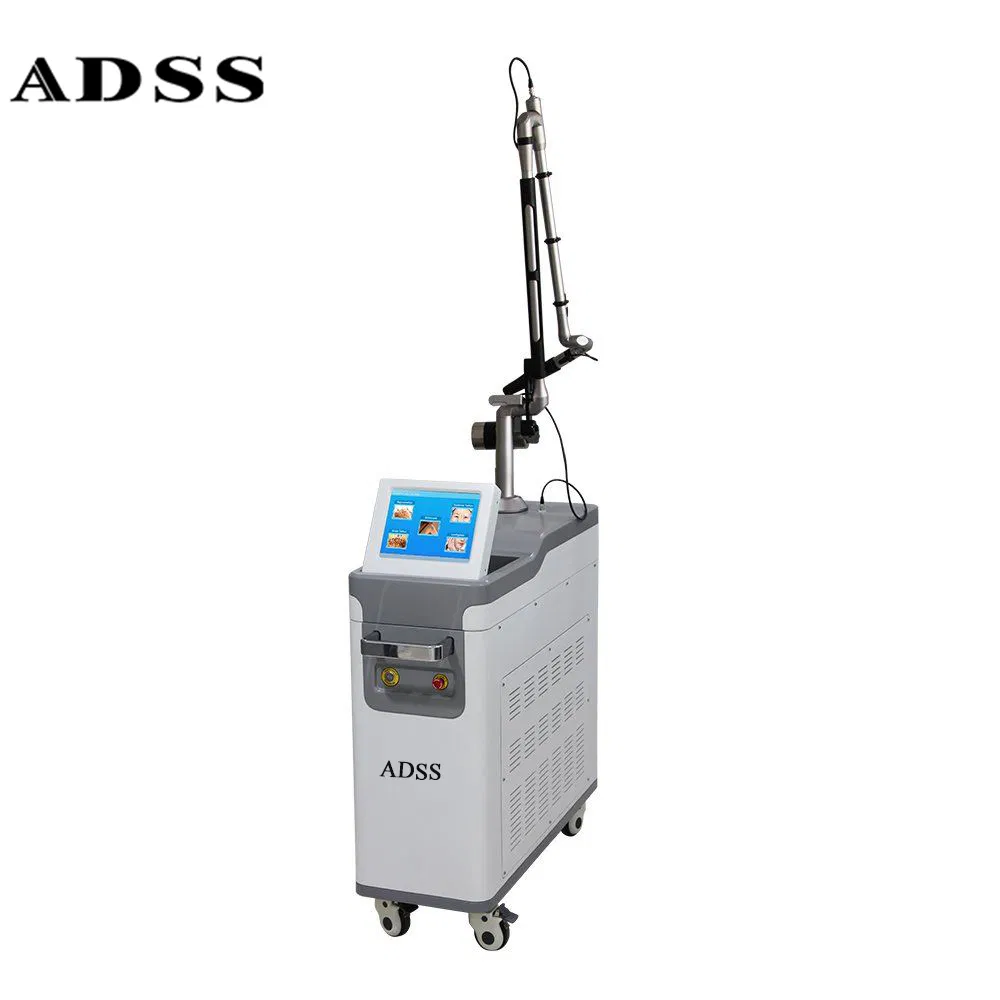

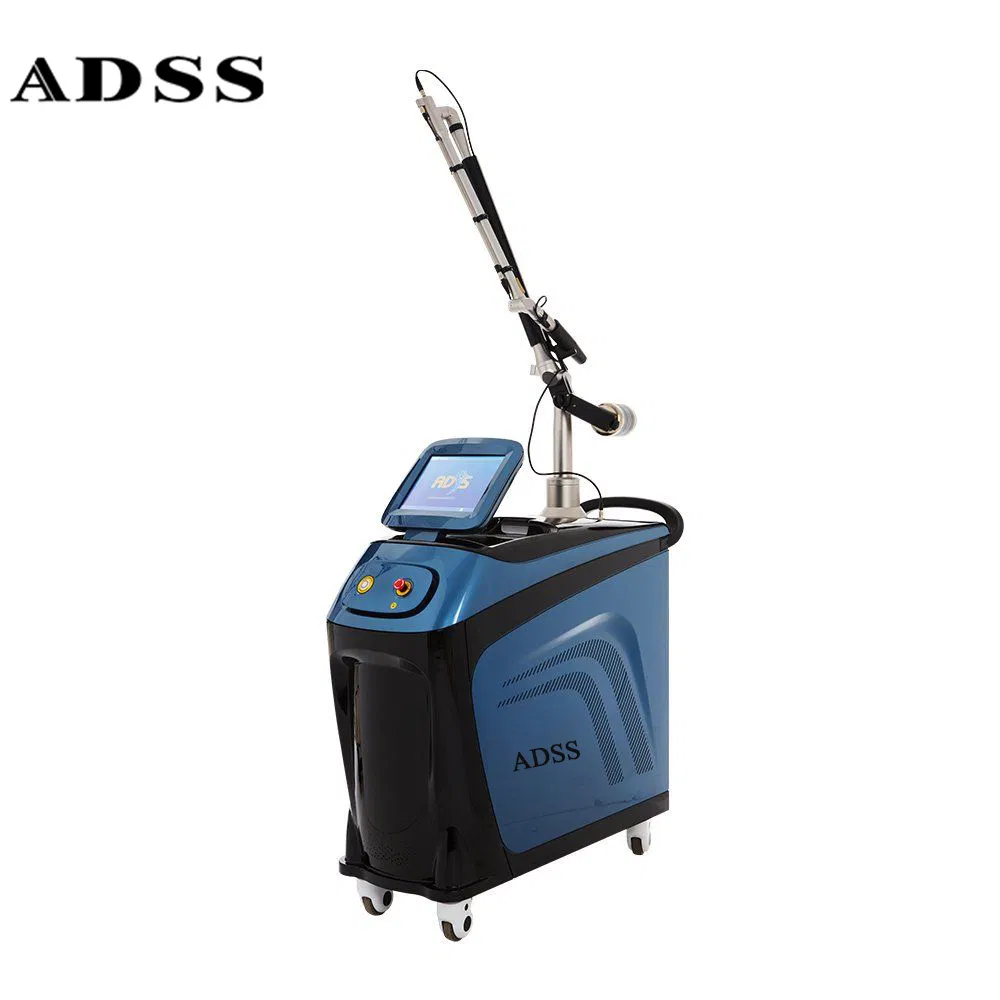

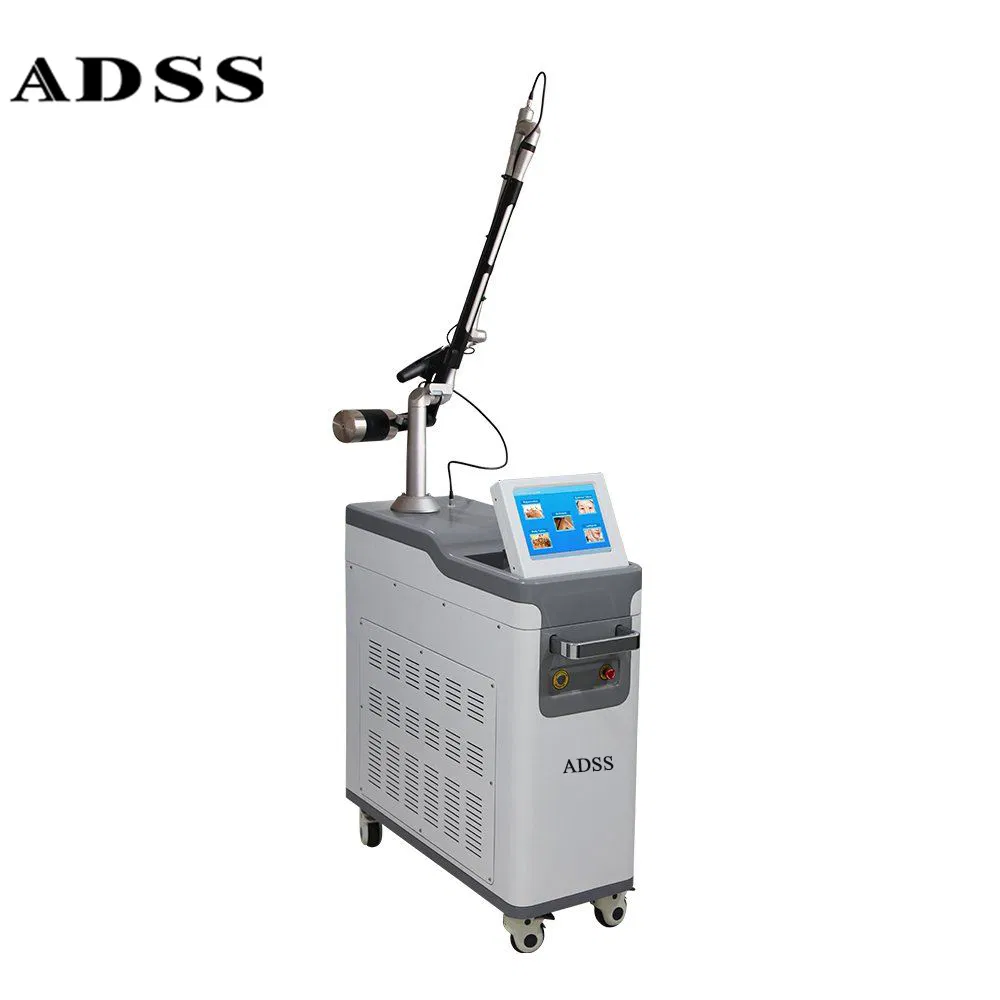

The FG2014 supports dual wavelengths. The 1064nm wavelength is primarily targeted for deep dermal lesions, dark tattoo pigments (like black, dark blue, brown), and skin toning. The 532nm wavelength is designed for superficial epidermal pigments and brighter colored pigments (like red, orange, yellow).
DUAL-Q mode delivers two constant-energy laser pulses in a very short span of time. This generates higher laser power output to crush pigments faster while minimizing side effects such as hypopigmentation or melasma recurrence by dividing high energy peaks into dual safer steps.
Quasi-Long Pulse mode (300us @ 1064nm) is an advanced skin toning technique. It stimulates deep-layer skin collagen cells via selective cellular heating, resulting in general skin structure rebuilding, pore size minimization, skin lifting, and recovery post-peel treatments.
Absolutely. The FG2014 is built with a sophisticated Auto-Calibration System. This real-time calibration keeps the output energy of the laser completely stable and consistent, even during hours of continuous operation in high-volume clinics.

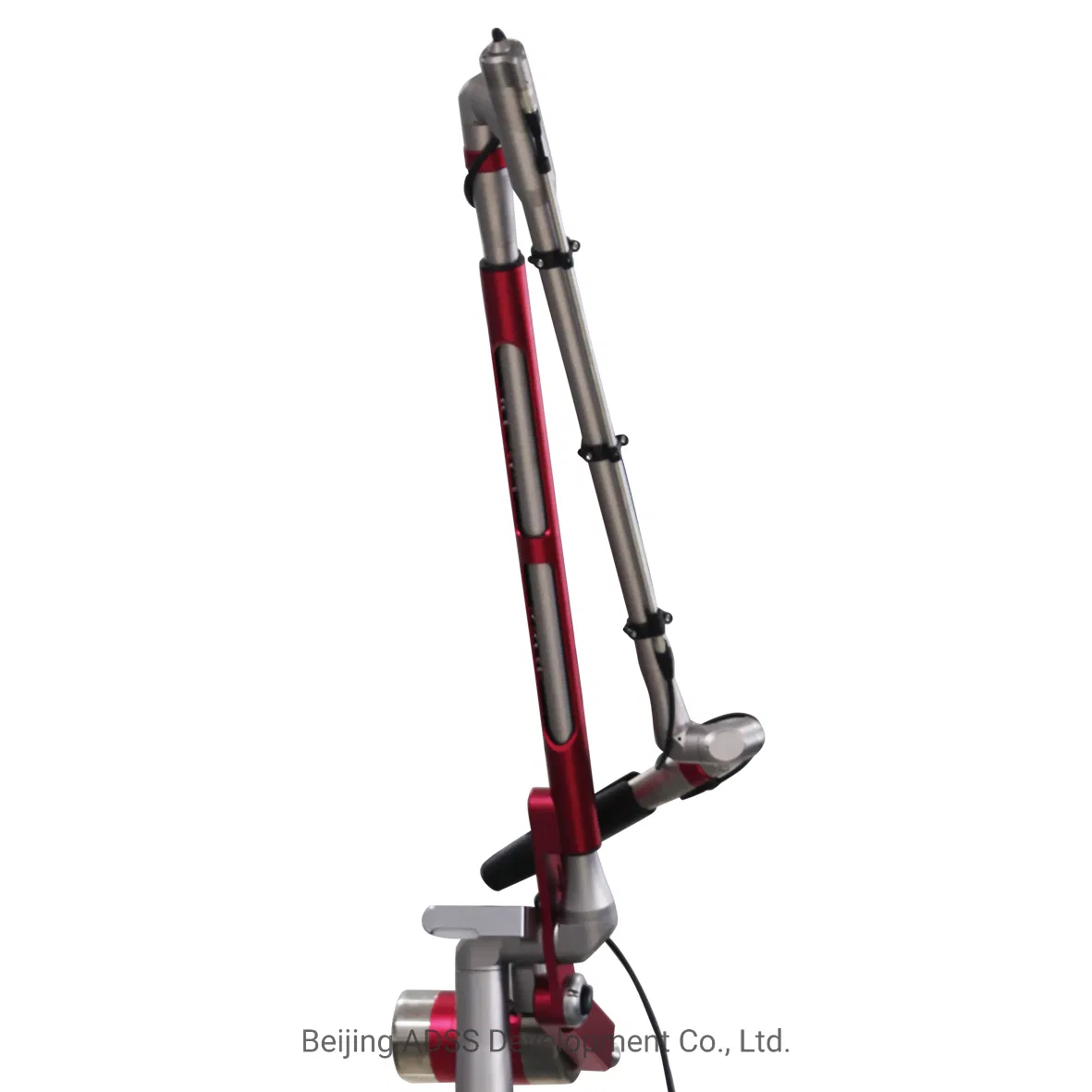

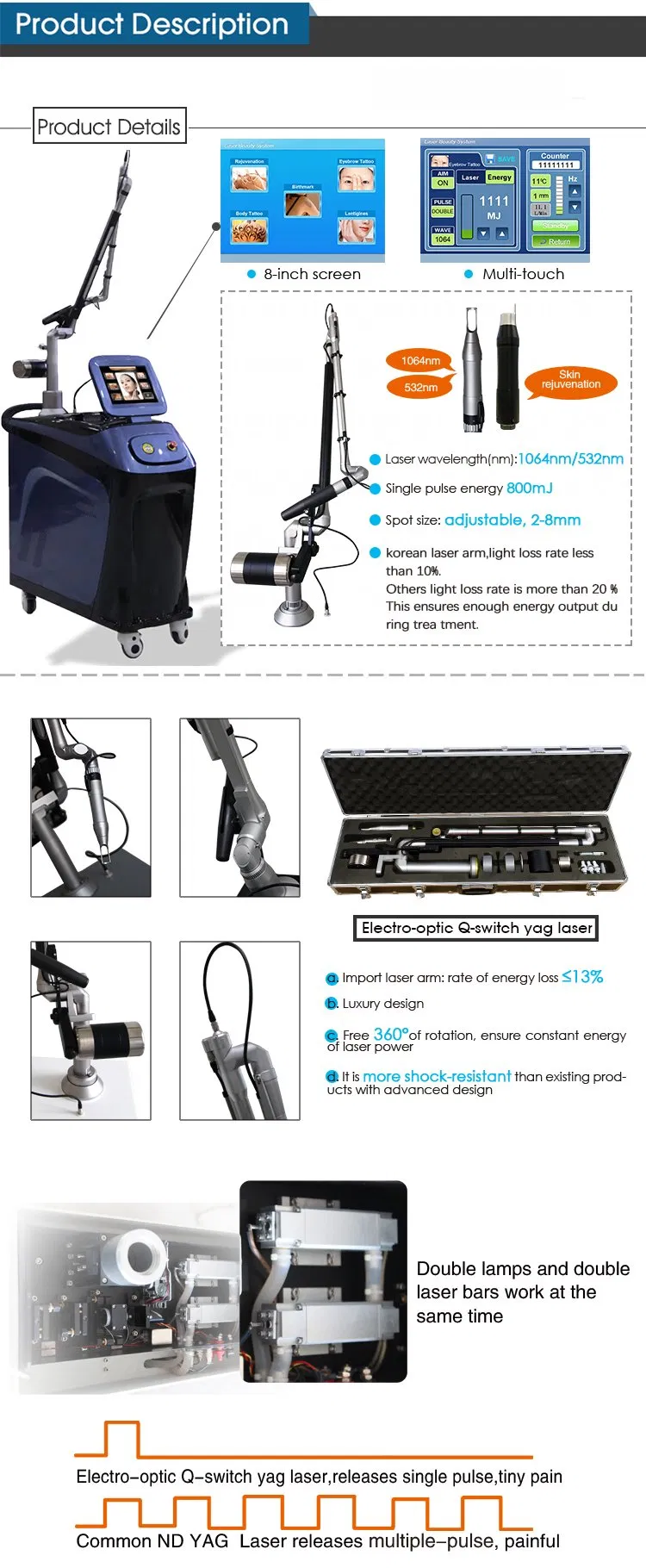

Our premium, imported 7-jointed articular optical arm offers a minimal energy transmission loss rate of ≤ 13%. It supports 360-degree free rotation, ensuring flexible and constant energy projection, while offering superior durability and shock-resistance.
Yes, we provide flexible OEM & ODM customization services to fit your specific market requests. The unit features high-end build materials, safe packaging (Aluminum Alloy Case), and complies fully with CE standards.
